Below are the XXX Sprint Car Chassis dimensions.  Click on a picture to enlarge.


Chassis Dimension - Side View

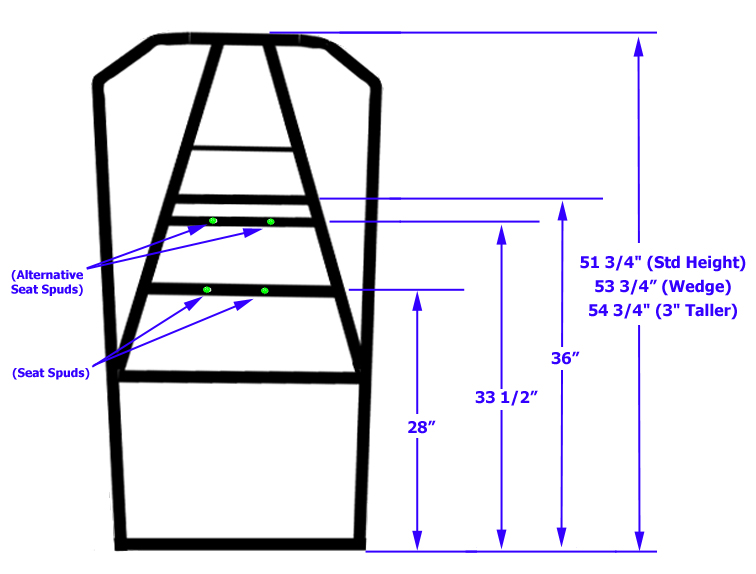

Chassis Dimension - A Frame

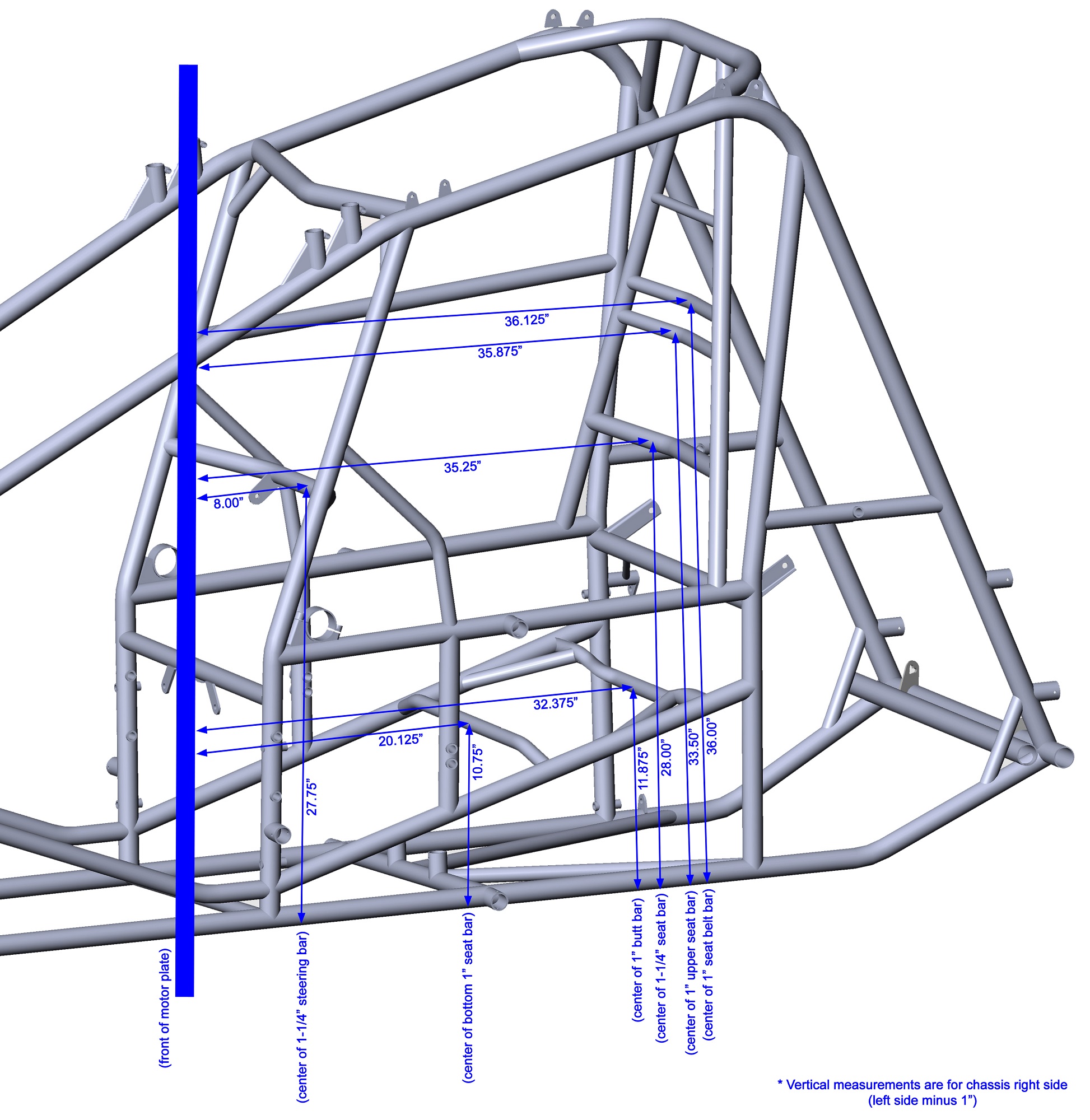

Chassis Dimension - Cockpit Length (All Chassis)
